Webhooks
NOTE Webhooks is a Sentinel EMS add-on feature available with an active webhooks subscription plan.
>About Authentication Profiles
|
What Is a Webhook?
Webhooks enable Sentinel EMS to notify client applications (or services) about a change or an update to a Sentinel EMS entity. Sentinel EMS uses webhooks to send event notifications to the client applications enabling the application to take an action in response to the event, for example:
>Synchronizing data between two applications
>Triggering automated workflows
>Allowing third-party integrations
In Sentinel EMS, webhooks support OAuth and Basic authentication to send HTTP requests to the client applications.
Prerequisites for Creating a Webhook
Only Sentinel EMS administrators can create webhooks. An authentication profile (Basic or OAuth) is required by webhooks to authenticate to the client applications. You can also define an authentication profile when creating a webhook.

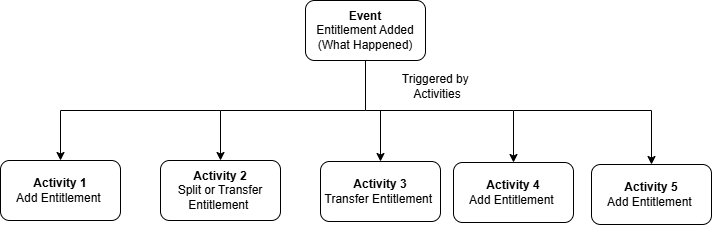

What Is an Event?
An event is created whenever an operation is performed on a Sentinel EMS entity, such as namespace or product. A webhook creates a subscription to the required event. For example, if you subscribe to the Feature Added event, you will receive the detailed information (JSON payload) every time a feature is added in Sentinel EMS.
You can create webhook subscriptions for the following events, where "Contact" refers to the User entity, and "User" refers to the Vendor User entity.
Entity Name | Operation | Activity Name | Event Name |
---|---|---|---|
Namespace | Create | Add Namespace | Namespace Added |
Namespace | Update | Update Namespace | Namespace Updated |
Namespace | Update | Replace Namespace | Namespace Updated |
Namespace | Delete | Delete Namespace | Namespace Updated |
Feature | Create | Add Feature | Feature Added |
Feature | Create | Bulk Feature Upload | Feature Added |
Feature | Update | Update Feature | Feature Updated |
Feature | Update | Replace Feature | Feature Updated |
Feature | Delete | Delete Feature | Feature Updated |
Feature | Update | Update License Models | Feature Updated |
Feature | Update | Replace License Models | Feature Updated |
Feature | Update | Delete License Models | Feature Updated |
Product | Create | Add Draft Product | Product Added |
Product | Create | Add Product |
>Product Added >Namespace Updated |
Product | Create | Bulk Product Upload | Product Added |
Product | Update | Update Product | Product Updated |
Product | Update | Replace Product | Product Updated |
Product | Delete | Delete Product | Product Updated |
Product | Update | Replace Associated Features | Product Updated |
Product | Update | Update Associated Features | Product Updated |
Product | Update | Delete Associated Feature | Product Updated |
Product Suite | Create | Add Product Suite | Product Suite Added |
Product Suite | Create | Bulk Product Suite Upload | Product Suite Added |
Product Suite | Update | Update product Suite | Product Suite Updated |
Product Suite | Update | Replace Product Suite | Product Suite Updated |
Product Suite | Delete | Delete Product Suite | Product Suite Updated |
Product Suite | Update | Update Associated Products | Product Suite Updated |
Product Suite | Update | Replace Associated Products | Product Suite Updated |
Product Suite | Update | Delete Associated Product | Product Suite Updated |
License Model | Create | Add License Model | License Model Added |
License Model | Update | Update License Model | License Model Updated |
License Model | Update | Replace License Model | License Model Updated |
License Model | Delete | Delete License Model | License Model Updated |
Download | Create | Add Download | Download Added |
Download | Update | Update Download | Download Updated |
Download | Update | Replace Download | Download Updated |
Download | Update | Delete Download | Download Updated |
Customer | Create | Add Customer | Customer Added |
Customer | Create | Bulk Customer Upload | Customer Added |
Customer | Update | Update Customer | Customer Updated |
Customer | Update | Replace Customer | Customer Updated |
Customer | Delete | Delete Customer | Customer Updated |
Customer | Update | Replace Associated Contacts | Customer Updated |
Customer | Update | Update Associated Contacts | Customer Updated |
Customer | Update | Delete Associated Contact | Customer Updated |
Contact | Create | Add Contact | Contact Added |
Contact | Create | Bulk Contact Upload | Contact Added |
Contact | Update | Update Contact | Contact Updated |
Contact | Update | Replace Contact | Contact Updated |
Contact | Delete | Delete Contact | Contact Updated |
Contact | Create | Register Contact | Contact Updated |
Contact | Update | Change Password | Contact Updated |
Contact | Update | Forgot Password | Contact Updated |
Channel Partner | Create | Add Partner | Partner Added |
Channel Partner | Update | Update Partner | Partner Updated |
Channel Partner | Update | Replace Partner | Partner Updated |
Channel Partner | Update | Delete Partner | Partner Updated |
Entitlement | Create | Add Entitlement |
>Entitlement Added >Feature Updated >Product Updated |
Entitlement | Create | Add Draft Entitlement | Entitlement Added |
Entitlement | Create | Add Entitlement | Entitlement Added |
Entitlement | Create | Bulk Entitlement Upload | Entitlement Added |
Entitlement | Create | Add Batch Entitlement | Entitlement Added |
Entitlement | Update | Update Entitlement | Entitlement Updated |
Entitlement | Update | Replace Entitlement | Entitlement Updated |
Entitlement | Delete | Delete Entitlement | Entitlement Updated |
Entitlement | Update | Associate Contact | Entitlement Updated |
Entitlement | Update | Remove Associated Contact | Entitlement Updated |
Entitlement | Update | Associate Customer | Entitlement Updated |
Entitlement | Update | Remove Associated Customer | Entitlement Updated |
Entitlement | Update | Add Product Key | Entitlement Updated |
Entitlement | Update | Update Product Key | Entitlement Updated |
Entitlement | Update | Associate Named Users | Entitlement Updated |
Entitlement | Update | Update Associated Named User | Entitlement Updated |
Entitlement | Update | Remove Associated Named User | Entitlement Updated |
Entitlement | Update | Entitlement Expired | Entitlement Updated |
Entitlement | Update | Associate Partners | Entitlement Updated |
Entitlement | Update | Remove Associated Partner | Entitlement Updated |
Entitlement | Update | Update Associated Partners | Entitlement Updated |
Entitlement | Update | Split or Transfer | Entitlement Updated |
Entitlement | Create | Split or Transfer | Entitlement Added |
Entitlement | Update | Split or Transfer | Product Key Quantity Exhausted |
Entitlement | Update | Update Product Key Association | Entitlement Updated |
Entitlement | Update | Remove From Product Key | Entitlement Updated |
Entitlement | Update | Update Variant Association | Entitlement Updated |
Entitlement | Update | Remove From Variant | Entitlement Updated |
Entitlement | Update | Update Entitlement Association | Entitlement Updated |
Entitlement | Update | Remove From Entitlement | Entitlement Updated |
Entitlement | Update | Expired |
>Entitlement Expired >Product Key Expired |
Fingerprint | Create | Add Fingerprint | Fingerprint Added |
Fingerprint | Update | Update Fingerprint | Fingerprint Updated |
Fingerprint | Delete | Delete Fingerprint | Fingerprint Updated |
Fingerprint | Update | Replace Fingerprint | Fingerprint Updated |
Custom Attribute | Create | Add Custom Attribute |
>Custom Attribute Added >List Attribute Added |
Custom Attribute | Update | Update Custom Attribute | Custom Attribute Updated |
Custom Attribute | Delete | Delete Custom Attribute | Custom Attribute Updated |
Custom Attribute | Update | Replace Associated Options | List Attribute Updated |
Custom Attribute | Update | Update Associated Options | List Attribute Updated |
Custom Attribute | Update | Delete Associated Options | List Attribute Updated |
Activation | Create | Add Activation |
>Activation Added >Product Key Quantity Exhausted |
Activation | Create | Renew Activation | Activation Added |
Activation | Update | Renew Activation | Activation Updated |
Activation | Update | Update Activation | Activation Updated |
Activation | Update | Replace Activation | Activation Updated |
Activation | Update | Rehost Activation | Activation Added |
Activation | Create | Rehost Activation | Activation Updated |
Activation | Update | Update Activatees | Activation Updated |
Activation | Update | Replace Activatees | Activation Updated |
Activation | Update | Mark as Revoked | Activation Updated |
Activation | Update | Custom Revocation | Activation Updated |
Activation | Update | Generate Permission Tickets | Activation Updated |
Activation | Update | Submit Revocation Proofs | Activation Updated |
Activation | Update | Confirm Revocation | Activation Updated |
Activation | Update | Reject Revocation | Activation Updated |
Activation | Update | Mark as Bulk Revoked | Activation Updated |
Activation | Update | Manage Activatee | Activation Updated |
User | Create | Add User | User Added |
User | Update | Update User | User Updated |
User | Update | Replace User | User Updated |
User | Update | Delete User | User Updated |
Role | Create | Add Role | Role Added |
Role | Update | Replace Role | Role Updated |
Role | Update | Update Role | Role Updated |
Role | Update | Delete Role | Role Updated |
Application Properties | Update | Update Application Properties | Application Properties Updated |
Device | Create | Add Device | Device Added |
Device | Update | Update Device | Device Updated |
Device | Update | Replace Device | Device Updated |
Device | Update | Claim Device | Device Updated |
Market Group | Create | Add Market Group | Market Group Added |
Market Group | Update | Delete Market Group | Market Group Updated |
Market Group | Update | Update Market Group | Market Group Updated |
Market Group | Update | Replace Market Group | Market Group Updated |
Custom Entity Record | Create | Add Custom Entity Record | Custom Entity Record Added |
Custom Entity Record | Update | Replace Custom Entity Record | Custom Entity Record Updated |
Custom Entity Record | Update | Update Custom Entity Record | Custom Entity Record Updated |
Custom Entity Record | Update | Delete Custom Entity Record | Custom Entity Record Updated |
Custom Entity | Create | Add Custom Entity | Custom Entity Added |
Custom Entity | Update | Replace Custom Entity | Custom Entity Updated |
Custom Entity | Update | Update Custom Entity | Custom Entity Updated |
Custom Entity | Update | Delete Custom Entity | Custom Entity Updated |
Custom Entity Attribute | Create | Add Custom Entity Attribute | Custom Entity Attribute Added |
Custom Entity Attribute | Update | Update Custom Entity Attribute | Custom Entity Attribute Updated |
Custom Entity Attribute | Update | Replace Custom Entity Attribute | Custom Entity Attribute Updated |
Custom Entity Attribute | Update | Delete Custom Entity Attribute | Custom Entity Attribute Updated |
Provisioning Plan | Create | Add Provisioning Plan | Provisioning Plan Added |
Provisioning Plan | Update | Update Provisioning Plan | Provisioning Plan Updated |
Provisioning Plan | Delete | Delete Provisioning Plan | Provisioning Plan Updated |
Provisioning Method | Create | Add Provisioning Method | Provisioning Method Added |
Provisioning Method | Update | Update Provisioning Method | Provisioning Method Updated |
Provisioning Method | Delete | Delete Provisioning Method | Provisioning Method Updated |
Provisioning Association | Create | Add Provisioning Association | Provisioning Association Added |
Provisioning Association | Update | Update Provisioning Association | Provisioning Association Updated |
Provisioning Association | Delete | Delete Provisioning Association | Provisioning Association Updated |
Provisioning Request | Update | Provisioning Request Dispatch | Provisioning Request Sent |
Provisioning Request | Update | Update Provisioning Request Status | Provisioning Failed |
Provisioning Request | Update | Update Provisioning Request Status | Provisioning Completed |
Provisioning Request | Update | Provisioning Request Dispatch | Provisioning Request Dispatch Failed |
Event Data
A webhook subscribes to a Sentinel EMS event. When the subscribed event occurs in Sentinel EMS, the webhook delivers its data in JSON format to the configured URL in an HTTP POST request.
The following are a few samples showing examples of the event data that webhooks deliver to the client application URL.
Example for the "Add Namespace" Event:
{ "eventName": "Namespace Added", "entityName": "Namespace", "webhookId": "875e3d87-e8b6-4556-98f6-612982d90600", "webhookName": "SampleNamespaceAdd", "activityName": "Add Namespace", "requestId": "631b7add-6100-4f2d-a357-85852346ca81", "eventId": "77b05f9e-32ff-41c2-b6be-243250b7bbb3", "url": "https://example.com/ems/api/v5/namespaces", "entityId": "17f1643b-f573-4c05-8039-eccbf62b2088", "currentState": "{\"namespace\":{\"id\":\"17f1643b-f573-4c05-8039-eccbf62b2088\",\"creationDate\":\"2023-01-24 06:29\",\"lastModifiedDate\":\"\",\"name\":\"Test\",\"description\":\"\",\"state\":\"DRAFT\",\"refId1\":\"\",\"refId2\":\"\"}}", "httpMethod": "POST", "performedBy": "admin", "actualUser": "admin", "tenantId": "10141c8b-2252-4ad7-9bd3-8b5fdcb59fc7", "creationDateTime": "2024-01-24 06:29", "operation": "Create", "opDatetime": "2024-01-24 06:29:44.000" }
Example for the "Update Namespace" Event:
{ "eventName": "Namespace Added", "entityName": "Namespace", "webhookId": "3d3d4461-8ff7-4831-9654", "webhookName": "TestWebhook", "activityName": "Add Namespace", "requestId": "3f59dfdb-3b65-4187-a44c-05ebaf1bf726", "eventId": "33c572c7-c05e-4215-a8d4", "url": "https://www.example.com/ems/api/v5/namespaces", "entityId": "735e1160-0b2d-47bc-afc6", "currentState": "{\"namespace\":{\"id\":\"735e1160-0b2d-47bc-afc6-0fea5e7cbac1\",\"creationDate\":\"2024-12-29 15:50\",\"lastModifiedDate\":\"\",\"name\":\"Name1\",\"description\":\"\",\"state\":\"DRAFT\",\"refId1\":\"\",\"refId2\":\"\"}}", "previousState":"{\"namespace\":{\"id\":\"735e1160-0b2d-47bc-afc6-0fea5e7cbac1\",\"creationDate\":\"2024-12-29 15:50\",\"lastModifiedDate\":\"2023-01-24 06:53\",\"name\":\"Name2\",\"description\":\"\",\"state\":\"DRAFT\",\"refId1\":\"\",\"refId2\":\"\"}}" }
Example for the "Product Key Quantity Exhausted" Event:
{{ "eventName": "Product Key Quantity Exhausted", "entityName": "Entitlement", "webhookId": "ef1b571b-a82f-4350-aa74-8aaf0d2524e3", "webhookName": "productkey", "activityName": "Add Activation", "requestId": "66793a69-2e31-4d12-931b-030fd60ff9e2", "eventId": "17cd72f6-183d-4400-9f40-f118eaa3c912", "url": "https://example.com/ems/api/v5/activations/bulkActivate", "entityId": "2394ce00-20de-4fd0-8112-717893990b27", "currentState": "{ "entitlement": { "externalId": "", "createdBy": "admin", "creationDate": "2023-11-17 11:29", "lastModifiedBy": "admin", "lastModifiedDate": "2023-11-17 11:29", "entitlementAsWhole": false, "eId": "52d00b55-b57b-486c-9565-261d8596972a", "id": "1b240166-59ed-4710-acf1-a24e9a58f3b3", "startDate": "2023-11-17", "expiry": { "neverExpires": true }, "customer": { "id": "4aa21bca-c832-4e12-a250-5b936669e1dd", "name": "TEST112", "identifier": "TEST112", "externalId": "" }, "contact": null, "entitlementPartners": null, "userRegistration": "OPTIONAL", "refId1": "", "refId2": "", "activationAllowed": true, "allowActivationBy": "ALL_USERS", "revocationAllowed": true, "state": "ENABLE", "sendNotification": true, "ccEmail": "", "isTest": false, "marketGroup": { "id": "8d042002-84f9-11ee-8f05-42010a520087", "name": "Default" }, "customAttributes": null, "productKeys": { "productKey": [ { "pkId": "831e39b6-fa66-4208-9718-417a529d5803", "creationDate": "2023-11-17 11:29", "lastModifiedDate": "2023-11-17 11:29", "externalId": null, "startDate": "2023-11-17", "expiry": { "neverExpires": true }, "id": "2394ce00-20de-4fd0-8112-717893990b27", "enforcement": { "id": "8aced5c3-84f9-11ee-8f05-42010a520087", "name": "Sentinel RMS", "version": "10.2" }, "totalQuantity": 1, "availableQuantity": 1, "splittedQuantity": 0, "activationMethod": "FIXED", "fixedQuantity": 1, "state": "ENABLE", "item": { "itemProduct": { "product": { "externalId": "", "id": "67058d72-9521-4172-8231-73a7ddf0f17e", "identifier": "2", "productType": "DEFAULT", "nameVersion": { "name": "Copy1", "version": "1" } } } }, "customAttributes": null } ] } } }", "httpMethod": "POST", "performedBy": "admin", "actualUser": "admin", "tenantId": "1a35a0ea-6584-44ad-8a42-2ef329cdacfe", "creationDateTime": "2023-11-17 11:30", "operation": "Update", "opDatetime": "2023-11-17 11:30:05.000" }
The parameters included in the event data are:
>eventName: Name of the subscribed event.
>entityName: Name of the Sentinel EMS entity for which the event occurred.
>webhookId: Unique identifier of the webhook.
>webhookName: Name of the webhook.
>activityName: Name of the activity that causes the event. For example, "Add Feature" and "Bulk Feature Upload" activities result in the "Feature Added" event.
>requestId: Unique identifier of the HTTP request sent to Sentinel EMS and from Sentinel EMS to client applications.
>eventId: Identifier of the subscribed event in Sentinel EMS.
>url: URL of the Sentinel EMS endpoint that is called for the event to happen.
>entityId: Identifier of the Sentinel EMS entity for which the event occurred.
>currentState: State (JSON) of the entity after the event occurred. It is blank for "Delete" events.
>previousState: State (JSON) of the entity before the event occurred.
NOTE
>The current state and previous state are included in the event data only if Include Data is set to Yes in a webhook.
>The Entitlement Expired event contains full entitlement payload only in the current state.
>The payload of the Product Key Quantity Exhausted event does not contain all the product keys for an entitlement. It contains selective entitlement fields for entitlement, customer, contact (representing the user entity), channel partner, product keys, and custom attributes, without any feature details.
>When an individual product key expires, then the Product Key Expired event is sent. When an entitlement expires, all the product keys in the entitlement also expire, however, only the Entitlement Expired event is sent.
>To configure the time zone in which the Entitlement Expired and Product Key Expired events occur, set the Time Zone for Expiration Events admin console property.
Built-in Retries for Webhooks
A webhook may fail to deliver data for a number of reasons, such as authorization failure or server is not reachable. Sentinel EMS webhooks attempt to deliver the event data to the client URL for three times (this number is non-configurable). After that, the webhook delivery is marked as failed. Use Sentinel EMS REST API to get details of events for which webhook delivery failed.
Webhook Status
By default, a webhook is enabled. You can disable a webhook if you want it to stop sending the event data to the client application.
Creating a Webhook
To create a webhook:
1.From the navigation pane, select Configuration > Webhooks to view the Webhooks page.
2. Click Add Webhook. The Add Webhook page opens.
3.Fill in the webhook attributes (described in the next section) and click Save.
Webhook Attributes
The following table explains the attributes that are used to create a webhook:
Attribute | Description | Required/Optional | Valid Values |
---|---|---|---|
Event |
Name of the event subscribed by the webhook. |
Required |
>A list of predefined events |
Name |
Unique name of the webhook.
|
Required |
>Alphanumeric >Special characters >Up to 100 characters |
Endpoint URL |
The URL of the client application to which the webhook posts the event data in the form of JSON. |
Required |
>Alphanumeric >Up to 2000 characters |
Authentication Profile |
Name of the authentication profile associated with the webhook. Enter a space to view the list of available authentication profiles. Select an authentication profile from the displayed list or click the Add Authentication button to create a new one. For details, see Creating an Authentication Profile. |
Required | A new or an existing authentication profile |
Description | A friendly description to identify the webhook. | Optional |
>Alphanumeric >Up to 500 characters |
Include Data | Specifies whether to include previous and current states of the entity (for which the event happened) in the event data sent to the endpoint URL. | Optional |
Yes OR No Default: Yes |
Enable Webhook | Determines whether the webhook can post event data to the endpoint URL. | Optional |
Yes OR No Default: Yes |
Actions for Webhooks
The following table lists the actions available for webhooks:
Action | Description | |
---|---|---|
Edit |
Updates an existing webhook. For details on editing webhooks, see Editing an Entity. |
|
Disable | Prevents the webhook from sending event data to the client application. | |
Delete |
Deletes a webhook. |
