OAuth Clients

>What Is an OAuth Client?

>Prerequisites for Creating an OAuth Client

>OAuth Grant Types

>Adding an OAuth Client

>Viewing OAuth Client Details

>Actions for OAuth Clients

>Choosing a Grant Type
See Choosing an OAuth Grant Type

>About the Sentinel IDP
See Sentinel Identity Provider (IDP)

What Is an OAuth Client?

Open Authorization or OAuth provides a secure and standardized way for users and applications to grant third-party applications controlled access to their resources, promoting security, privacy, and ease of use in a modern web ecosystem.

The OAuth (Open Authorization) 2.0 authorization framework is a protocol that enables end users using an application to grant third-party applications (usually on another web site) limited access to their protected resources, such as user data or functionality, without sharing their end user credentials, such as user names and passwords.

An OAuth client refers to an application or service that can make requests for protected resources on behalf of the resource owner after the resource owner grants authorization. The resource owner can be the end user or the application itself (using machine-to-machine communication that does not involve the end user). There are two types of OAuth clients: confidential and public. Confidential clients are registered with a client secret, while public clients are not.

The OAuth client can be a web application, a mobile application, or even a command-line tool.

NOTE When working with OAuth, you can use any relevant Sentinel REST API. You are not limited to the Sentinel EMS REST APIs.

Prerequisites for Creating an OAuth Client

The vendor user must have administrative rights in Sentinel EMS. For details, see Roles.

OAuth Grant Types

An OAuth grant type determines how an application obtains an access token to access protected resources. The following grant types are available:

Grant Type	Description
Client Credentials	Used for server-to-server communication, where the client application sends its own credentials (client ID and client secret) to generate an access token. This is done in the back end on behalf of the client application without user intervention. (This grant type does not involve user authentication or authorization.) Learn when to use client credentials The client credentials grant type is used when the selected Client Type is Confidential. A typical use case is when the client application needs to access resources that are not specific to any user.
Authorization Code	Used primarily for server-side web applications, generating an access token using an authorization code is a two-step process that may or may not include PKCE (Proof Key for Code Exchange). Learn more about this two-step process 1.Authorization Request. The client application redirects to the authorization server's endpoint, which is a specific URL provided by the OAuth server that handles the initial step of the OAuth flow. The client application passes the necessary parameters, including the client ID, redirect URI, and scope. The end user is then presented with a login screen and logs in. After successful authentication, the authorization code is provided to the client application 2.Token Request. After the end user grants authorization, the authorization server redirects the call back to the client application's redirect URI with an authorization code. The client application then exchanges this authorization code for an access token by making a request to the authorization server's token endpoint, providing the authorization code, client ID, client secret, and redirect URI. The Authorization Code grant type is very secure because the client application never sees the end user's credentials. This grant type also allows for the use of refresh tokens to obtain new access tokens without requiring end user interaction. PKCE is an optional method that can be used in addition to the Authorization Code grant type when the selected Client Type is Public. PKCE uses a code challenge and verifier mechanism to ensure that the client making the token request is the same client that initiated the authorization process. This additional security layer helps prevent authorization code interception attacks, enhancing the security of OAuth authorization endpoints. Learn about the PKCE code challenges—Plain and S256 >Plain. The client application includes the plain code challenge in the authorization request. The code challenge is the same as the code verifier. It is recommended to use this method only when S256 is not possible. This challenge is much less secure than S256 because if the authorization code is intercepted, the attacker can use that code to obtain an access token. >S256. The code challenge is the SHA-256 hash of the code verifier, encoded using base64url. The client application includes the S256 code challenge in the authorization request. This challenge provides a greater level of security compared to the plain challenge. Even if the authorization code is intercepted, the attacker cannot derive the code verifier from the code challenge.

Grant Type

Description

Client Credentials

Used for server-to-server communication, where the client application sends its own credentials (client ID and client secret) to generate an access token. This is done in the back end on behalf of the client application without user intervention. (This grant type does not involve user authentication or authorization.) Learn when to use client credentials

Authorization Code

Used primarily for server-side web applications, generating an access token using an authorization code is a two-step process that may or may not include PKCE (Proof Key for Code Exchange). Learn more about this two-step process

PKCE is an optional method that can be used in addition to the Authorization Code grant type when the selected Client Type is Public. PKCE uses a code challenge and verifier mechanism to ensure that the client making the token request is the same client that initiated the authorization process. This additional security layer helps prevent authorization code interception attacks, enhancing the security of OAuth authorization endpoints. Learn about the PKCE code challenges—Plain and S256

Adding an OAuth Client

To add an OAuth client:

1.From the navigation pane, select Identies & Access > OAuth Clients to view the OAuth Clients page.

2.Click the Add OAuth Client button.

3.Fill in the OAuth client attributes. The available options change according to your selections.

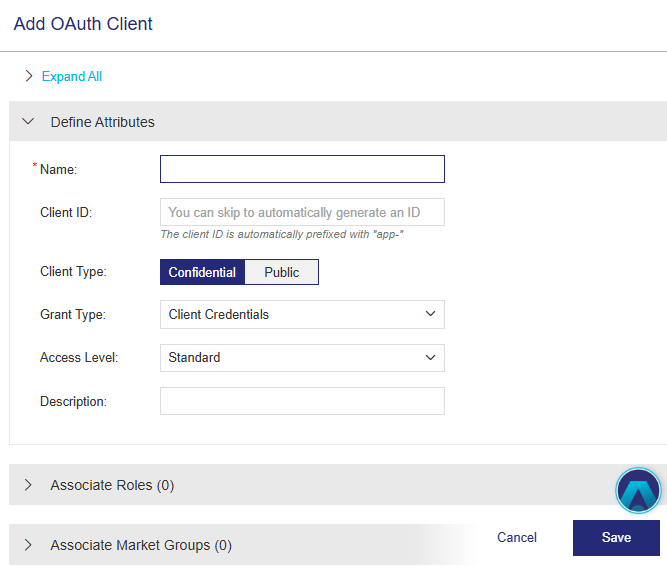

Confidential Client Type with Client Credentials Grant Type

Confidential Client Type with Authorization Code Grant Type

Public Client Type with Authorization Code Grant Type

The following table explains the attributes that are used to create an OAuth client:

Attribute	Description	Required/Optional	Valid Values
Name	The name of the OAuth client.	Required	>Alphanumeric >1 to 255 characters >Must be unique
Client ID	The OAuth client ID defined in Sentinel EMS. If not specified, then the value is automatically generated when the OAuth client is created. The client ID, whether user-defined or auto-generated, is automatically prefixed with 'app-'. You can click Copy to copy the client ID to the Clipboard.	Required	>Special characters supported: _ (underscore) and - (hyphen )
Client Type	Determines the level of trust and security associated with the client application. >Confidential A confidential client is a client application that can securely store and maintain its client credentials, such as a client ID and client secret. Learn more These credentials are used to securely authenticate the client application with the authorization server during the OAuth flow, ensuring that only authorized clients can access protected resources. Typical uses include server-side applications or applications that run on trusted devices, such as a web server or a mobile app with a secure back end. >Public A public client is a client application that cannot securely store its client credentials. Learn more These credentials are typically embedded in the client application's code or configuration files, making them easily accessible to anyone who has access to the client application. When a public client initiates the OAuth flow, it relies on other mechanisms, such as redirect URIs, to establish its identity and obtain access tokens. Typical uses include client-side applications, such as JavaScript-based applications running in a web browser or mobile apps running on end user devices, as well as on-premises applications.	Required	One of the following: >Confidential >Public
Grant Type	(Editable only if Client Type is Confidential.) Determines how an application can obtain an access token to access protected resources. > Client Credentials Used for server-to-server communication, where the client application sends its own credentials (client ID and client secret) to generate an access token. This is done in the back end on behalf of the client application without user intervention. (This grant type does not involve user authentication or authorization.) Learn when to use client credentials The client credentials grant type is used when the selected Client Type is Confidential. A typical use case is when the client application needs to access resources that are not specific to any user. > Authorization Code Used primarily for server-side web applications, generating an access token using an authorization code is a two-step process that may or may not include PKCE (Proof Key for Code Exchange). Learn more about this two-step process 1.Authorization Request. The client application redirects to the authorization server's endpoint, which is a specific URL provided by the OAuth server that handles the initial step of the OAuth flow. The client application passes the necessary parameters, including the client ID, redirect URI, and scope. The end user is then presented with a login screen and logs in. After successful authentication, the authorization code is provided to the client application 2.Token Request. After the end user grants authorization, the authorization server redirects the call back to the client application's redirect URI with an authorization code. The client application then exchanges this authorization code for an access token by making a request to the authorization server's token endpoint, providing the authorization code, client ID, client secret, and redirect URI. The Authorization Code grant type is very secure because the client application never sees the end user's credentials. This grant type also allows for the use of refresh tokens to obtain new access tokens without requiring end user interaction.	Required	One of the following: >Client Credentials. •Available only for the Confidential client type. •Default grant type for the Confidential client type. >Authorization Code. •Available for both the Confidential client type and Public client type. •For the Public client type, the grant type is always Authorization Code.
Redirect URIs	(Visible only if the grant type is Authorization Code.) A redirect URI serves as a callback URL where an end user or service is redirected after successfully authenticating and authorizing the client application (for example, a web page or a location in the client application). Learn more Purpose: To prevent malicious applications from intercepting the OAuth flow and to enhance overall security. Usage: Specify one or more valid redirect URIs that your client application uses when integrating with the identity provider (Sentinel IDP or your own identity provider). An example of a redirect URI might be `https://myapp.com/callback`. Steps in the redirect URI flow: 1.Verification of Redirect URI: During the authentication flow, the identity provider validates that the redirect URI sent by the client matches one of the registered redirect URIs. If the URI does not match, the request is rejected. 2.Redirection After Authentication: After the authentication flow, the user or service is redirected to the redirect URI, which must be an authorized URL. 3.Secure Exchange of Authorization Code or Access Token: The client application securely exchanges the authorization code or access token with the OAuth server, This enables the application to access protected resources on behalf of the user or service. Wildcard Support: You can optionally include wildcards in the redirect URI to allow flexibility if needed, although using wildcards is less secure than using absolute redirect URI values. An example of a redirect URI wildcard might be, `https://myapp.com/`. The asterisk () indicates that all paths under myapp.com are valid redirect URIs. Example: Suppose that you specify `https://myapp.com/callback` as the redirect URI. During authentication, the client application sends the user or service to Sentinel IDP or your own identity provider. After successful authentication, the user or service is redirected to `https://myapp.com/callback`, where the identity provider sends the authorization code or token. This ensures the secure and reliable handling of user authentication and data access.	Required	>Maximum: 5 redirect URIs >Maximum: 255 characters >Cannot contain the following characters: # % ^ { } \| [ ] \ >Must match the redirect URIs in the client application
Web Origins	(Visible only if the grant type is Authorization Code.) A web origin, represented by a URL, specifies the origin of a web application. Web origins are essential for authorizing client applications that make cross-origin requests (CORS) to the authorization server for accessing protected resources. Learn more Purpose: To secure the client application by limiting which domains can make requests to the identity provider's services (Sentinel IDP or your own identity provider). Importance for SPAs: Although this field is optional, web origins are especially crucial for Single Page Applications (SPAs) where JavaScript runs in a user's browser. Usage: You specify the web origin, which is typically the domain from which your application is served, for example, `https://myapp.com`, but can also be an IP address with an optional port, for example, `https://192.0.2.11:8080`. This ensures that from that origin, only your application can make authenticated API calls to the identity provider. The identity provider adds the necessary CORS headers (Access-Control-Allow-Origin) based on this configuration. Wildcard Support: Web origins do not support wildcards. You must explicitly list each domain from which requests are allowed. Strengthening Cross-Origin Resource Sharing (CORS) Security: If the OAuth client is a web application that makes cross-origin requests to an OAuth-protected resource server (such as an API), you can implement CORS headers to control which origins can access the resource server. The web origin of the OAuth client must match one of the allowed origins in the CORS policy.	Optional	>Maximum: 5 web origins >Maximum: 255 characters >Must match the registered web origin of the OAuth client >Cannot contain a slash (/) at the end of the domain •Correct: `https://myapp.com` •Incorrect: `https://myapp.com/`
PKCE Code Challenge Method	(Visible only if Client Type is Public.) PKCE (Proof Key for Code Exchange) is an optional method that can be used in addition to the Authorization Code grant type. Learn more about PKCE and its Plain and S256 code challenges PKCE uses a code challenge and verifier mechanism to ensure that the client making the token request is the same client that initiated the authorization process. This additional security layer helps prevent authorization code interception attacks, enhancing the security of OAuth authorization endpoints. >Plain. The client application includes the plain code challenge in the authorization request. The code challenge is the same as the code verifier. It is recommended to use this method only when S256 is not possible. This challenge is much less secure than S256 because if the authorization code is intercepted, the attacker can use that code to obtain an access token. >S256. The code challenge is the SHA-256 hash of the code verifier, encoded using base64url. The client application includes the S256 code challenge in the authorization request. This challenge provides a greater level of security compared to the plain challenge. Even if the authorization code is intercepted, the attacker cannot derive the code verifier from the code challenge.	Optional	One of the following: >Plain >S256
Description	Additional information about the OAuth client.	Optional	>Alphanumeric >0 to 255 characters

4.Click Save. The Add OAuth Client page closes, and the OAuth client is added to the list on the OAuth Clients page.

Viewing OAuth Client Details

From the navigation pane in the vendor portal, select Identities & Access > OAuth Clients to view the OAuth Clients page. The following information can be viewed after creating an OAuth client:

>OAuth Client Details

>OAuth Client Attributes Tab

>Credentials Tab

OAuth Client Details

The following information is available for each OAuth client on the OAuth Clients page.

Attribute	Description
Status	The status of the OAuth client can be one of the following: >Enabled: The OAuth client is enabled and can be used to create access tokens. >Disabled: The OAuth client is disabled and cannot be used to create access tokens. To use the OAuth client, you must enable it.
Request Status	On rare occasions, it may take some time to process an OAuth client request. During this time, the Request Status attribute is added to the OAuth Client Attributes tab, informing you that the request is in progress. After the request is successfully completed, this attribute is removed. While the request is in progress, you cannot edit or delete the OAuth client, but you can copy the OAuth client if needed.
Name	The name of the OAuth client.
Client ID	The OAuth client ID defined in Sentinel EMS. If not specified, then the value is automatically generated when the OAuth client is created. The client ID, whether user-defined or auto-generated, is automatically prefixed with 'app-'. You can click Copy to copy the client ID to the Clipboard.
Client Type	Determines the level of trust and security associated with the client application. >Confidential A confidential client is a client application that can securely store and maintain its client credentials, such as a client ID and client secret. Learn more These credentials are used to securely authenticate the client application with the authorization server during the OAuth flow, ensuring that only authorized clients can access protected resources. Typical uses include server-side applications or applications that run on trusted devices, such as a web server or a mobile app with a secure back end. >Public A public client is a client application that cannot securely store its client credentials. Learn more These credentials are typically embedded in the client application's code or configuration files, making them easily accessible to anyone who has access to the client application. When a public client initiates the OAuth flow, it relies on other mechanisms, such as redirect URIs, to establish its identity and obtain access tokens. Typical uses include client-side applications, such as JavaScript-based applications running in a web browser or mobile apps running on end user devices, as well as on-premises applications.
Grant Type	(Editable only if Client Type is Confidential.) Determines how an application can obtain an access token to access protected resources. > Client Credentials Used for server-to-server communication, where the client application sends its own credentials (client ID and client secret) to generate an access token. This is done in the back end on behalf of the client application without user intervention. (This grant type does not involve user authentication or authorization.) Learn when to use client credentials The client credentials grant type is used when the selected Client Type is Confidential. A typical use case is when the client application needs to access resources that are not specific to any user. > Authorization Code Used primarily for server-side web applications, generating an access token using an authorization code is a two-step process that may or may not include PKCE (Proof Key for Code Exchange). Learn more about this two-step process 1.Authorization Request. The client application redirects to the authorization server's endpoint, which is a specific URL provided by the OAuth server that handles the initial step of the OAuth flow. The client application passes the necessary parameters, including the client ID, redirect URI, and scope. The end user is then presented with a login screen and logs in. After successful authentication, the authorization code is provided to the client application 2.Token Request. After the end user grants authorization, the authorization server redirects the call back to the client application's redirect URI with an authorization code. The client application then exchanges this authorization code for an access token by making a request to the authorization server's token endpoint, providing the authorization code, client ID, client secret, and redirect URI. The Authorization Code grant type is very secure because the client application never sees the end user's credentials. This grant type also allows for the use of refresh tokens to obtain new access tokens without requiring end user interaction.
Redirect URIs	(Visible only if the grant type is Authorization Code.) A redirect URI serves as a callback URL where an end user or service is redirected after successfully authenticating and authorizing the client application (for example, a web page or a location in the client application). Learn more Purpose: To prevent malicious applications from intercepting the OAuth flow and to enhance overall security. Usage: One or more valid redirect URIs that your client application uses when integrating with the identity provider (Sentinel IDP or your own identity provider). An example of a redirect URI might be `https://myapp.com/callback`. Steps in the redirect URI flow: 1.Verification of Redirect URI: During the authentication flow, the identity provider validates that the redirect URI sent by the client matches one of the registered redirect URIs. If the URI does not match, the request is rejected. 2.Redirection After Authentication: After the authentication flow, the user or service is redirected to the redirect URI, which must be an authorized URL. 3.Secure Exchange of Authorization Code or Access Token: The client application securely exchanges the authorization code or access token with the OAuth server, This enables the application to access protected resources on behalf of the user or service.
Web Origins	(Visible only if the grant type is Authorization Code and at least one web origin is defined.) A web origin, represented by a URL, specifies the origin of a web application. Web origins are essential for authorizing client applications that make cross-origin requests (CORS) to the authorization server for accessing protected resources. Learn more Purpose: To secure the client application by limiting which domains can make requests to the identity provider's services (Sentinel IDP or your own identity provider). Importance for SPAs: Web origins are especially crucial for Single Page Applications (SPAs) where JavaScript runs in a user's browser. Usage: Specifies the domain from which your application is served, for example, `https://myapp.com`, but can also be an IP address with an optional port, for example, `https://192.0.2.11:8080`. This ensures that from that origin, only your application can make authenticated API calls to the identity provider. The identity provider adds the necessary CORS headers (Access-Control-Allow-Origin) based on this configuration. Strengthening Cross-Origin Resource Sharing (CORS) Security: If the OAuth client is a web application that makes cross-origin requests to an OAuth-protected resource server (such as an API), you can implement CORS headers to control which origins can access the resource server. The web origin of the OAuth client must match one of the allowed origins in the CORS policy.
PKCE Code Challenge Method	(Visible only if Client Type is Public and a PKCE option is defined.) PKCE (Proof Key for Code Exchange) is an optional method that can be used in addition to the Authorization Code grant type. Learn more about PKCE and its Plain and S256 code challenges PKCE uses a code challenge and verifier mechanism to ensure that the client making the token request is the same client that initiated the authorization process. This additional security layer helps prevent authorization code interception attacks, enhancing the security of OAuth authorization endpoints. >Plain. The client application includes the plain code challenge in the authorization request. The code challenge is the same as the code verifier. It is recommended to use this method only when S256 is not possible. This challenge is much less secure than S256 because if the authorization code is intercepted, the attacker can use that code to obtain an access token. >S256. The code challenge is the SHA-256 hash of the code verifier, encoded using base64url. The client application includes the S256 code challenge in the authorization request. This challenge provides a greater level of security compared to the plain challenge. Even if the authorization code is intercepted, the attacker cannot derive the code verifier from the code challenge.
Description	(Visible only if defined.) Additional information about the OAuth client.
Creation Date	The date and time that the OAuth client was created in MM-DD-YYYY HH:MM format.
Last Modified Date	(Visible only if the OAuth client was modified.) The date and time that changes were last made to the OAuth client in MM-DD-YYYY HH:MM format.

OAuth Client Attributes Tab

The following table explains the attributes displayed in the OAuth Client Attributes tab when you expand a line item for an OAuth client.

Attribute	Description
Status	The status of the OAuth client can be one of the following: >Enabled: The OAuth client is enabled and can be used to create access tokens. >Disabled: The OAuth client is disabled and cannot be used to create access tokens. To use the OAuth client, you must enable it.
Request Status	On rare occasions, it may take some time to process an OAuth client request. During this time, the Request Status attribute is added to the OAuth Client Attributes tab, informing you that the request is in progress. After the request is successfully completed, this attribute is removed. While the request is in progress, you cannot edit or delete the OAuth client, but you can copy the OAuth client if needed.
Name	The name of the OAuth client.
Client ID	The OAuth client ID defined in Sentinel EMS. If not specified, then the value is automatically generated when the OAuth client is created. The client ID, whether user-defined or auto-generated, is automatically prefixed with 'app-'. You can click Copy to copy the client ID to the Clipboard.
Client Type	Determines the level of trust and security associated with the client application. >Confidential A confidential client is a client application that can securely store and maintain its client credentials, such as a client ID and client secret. Learn more These credentials are used to securely authenticate the client application with the authorization server during the OAuth flow, ensuring that only authorized clients can access protected resources. Typical uses include server-side applications or applications that run on trusted devices, such as a web server or a mobile app with a secure back end. >Public A public client is a client application that cannot securely store its client credentials. Learn more These credentials are typically embedded in the client application's code or configuration files, making them easily accessible to anyone who has access to the client application. When a public client initiates the OAuth flow, it relies on other mechanisms, such as redirect URIs, to establish its identity and obtain access tokens. Typical uses include client-side applications, such as JavaScript-based applications running in a web browser or mobile apps running on end user devices, as well as on-premises applications.
Grant Type	(Editable only if Client Type is Confidential.) Determines how an application can obtain an access token to access protected resources. > Client Credentials Used for server-to-server communication, where the client application sends its own credentials (client ID and client secret) to generate an access token. This is done in the back end on behalf of the client application without user intervention. (This grant type does not involve user authentication or authorization.) Learn when to use client credentials The client credentials grant type is used when the selected Client Type is Confidential. A typical use case is when the client application needs to access resources that are not specific to any user. > Authorization Code Used primarily for server-side web applications, generating an access token using an authorization code is a two-step process that may or may not include PKCE (Proof Key for Code Exchange). Learn more about this two-step process 1.Authorization Request. The client application redirects to the authorization server's endpoint, which is a specific URL provided by the OAuth server that handles the initial step of the OAuth flow. The client application passes the necessary parameters, including the client ID, redirect URI, and scope. The end user is then presented with a login screen and logs in. After successful authentication, the authorization code is provided to the client application 2.Token Request. After the end user grants authorization, the authorization server redirects the call back to the client application's redirect URI with an authorization code. The client application then exchanges this authorization code for an access token by making a request to the authorization server's token endpoint, providing the authorization code, client ID, client secret, and redirect URI. The Authorization Code grant type is very secure because the client application never sees the end user's credentials. This grant type also allows for the use of refresh tokens to obtain new access tokens without requiring end user interaction.
Redirect URIs	(Visible only if the grant type is Authorization Code.) A redirect URI serves as a callback URL where an end user or service is redirected after successfully authenticating and authorizing the client application (for example, a web page or a location in the client application). Learn more Purpose: To prevent malicious applications from intercepting the OAuth flow and to enhance overall security. Usage: One or more valid redirect URIs that your client application uses when integrating with the identity provider (Sentinel IDP or your own identity provider). An example of a redirect URI might be `https://myapp.com/callback`. Steps in the redirect URI flow: 1.Verification of Redirect URI: During the authentication flow, the identity provider validates that the redirect URI sent by the client matches one of the registered redirect URIs. If the URI does not match, the request is rejected. 2.Redirection After Authentication: After the authentication flow, the user or service is redirected to the redirect URI, which must be an authorized URL. 3.Secure Exchange of Authorization Code or Access Token: The client application securely exchanges the authorization code or access token with the OAuth server, This enables the application to access protected resources on behalf of the user or service.
Web Origins	(Visible only if the grant type is Authorization Code and at least one web origin is defined.) A web origin, represented by a URL, specifies the origin of a web application. Web origins are essential for authorizing client applications that make cross-origin requests (CORS) to the authorization server for accessing protected resources. Learn more Purpose: To secure the client application by limiting which domains can make requests to the identity provider's services (Sentinel IDP or your own identity provider). Importance for SPAs: Web origins are especially crucial for Single Page Applications (SPAs) where JavaScript runs in a user's browser. Usage: Specifies the domain from which your application is served, for example, `https://myapp.com`, but can also be an IP address with an optional port, for example, `https://192.0.2.11:8080`. This ensures that from that origin, only your application can make authenticated API calls to the identity provider. The identity provider adds the necessary CORS headers (Access-Control-Allow-Origin) based on this configuration. Strengthening Cross-Origin Resource Sharing (CORS) Security: If the OAuth client is a web application that makes cross-origin requests to an OAuth-protected resource server (such as an API), you can implement CORS headers to control which origins can access the resource server. The web origin of the OAuth client must match one of the allowed origins in the CORS policy.
PKCE Code Challenge Method	(Visible only if Client Type is Public and a PKCE option is defined.) PKCE (Proof Key for Code Exchange) is an optional method that can be used in addition to the Authorization Code grant type. Learn more about PKCE and its Plain and S256 code challenges PKCE uses a code challenge and verifier mechanism to ensure that the client making the token request is the same client that initiated the authorization process. This additional security layer helps prevent authorization code interception attacks, enhancing the security of OAuth authorization endpoints. >Plain. The client application includes the plain code challenge in the authorization request. The code challenge is the same as the code verifier. It is recommended to use this method only when S256 is not possible. This challenge is much less secure than S256 because if the authorization code is intercepted, the attacker can use that code to obtain an access token. >S256. The code challenge is the SHA-256 hash of the code verifier, encoded using base64url. The client application includes the S256 code challenge in the authorization request. This challenge provides a greater level of security compared to the plain challenge. Even if the authorization code is intercepted, the attacker cannot derive the code verifier from the code challenge.
Description	(Visible only if defined.) Additional information about the OAuth client.
Creation Date	The date and time that the OAuth client was created in MM-DD-YYYY HH:MM format.
Last Modified Date	(Visible only if the OAuth client was modified.) The date and time that changes were last made to the OAuth client in MM-DD-YYYY HH:MM format.

Credentials Tab

The following table explains the attributes displayed in the Credentials tab when you expand a line item for an OAuth client whose Client Type is Confidential.

Attribute	Description
Client Authenticator	The type of data used to authenticate the OAuth client. Currently, the value is always Client ID & Client Secret.
Client ID	The OAuth client ID defined in Sentinel EMS. If not specified, then the value is automatically generated when the OAuth client is created. The client ID, whether user-defined or auto-generated, is automatically prefixed with 'app-'. You can click Copy to copy the client ID to the Clipboard.
Client Secret	Relevant only for confidential clients. A secret used in the authentication process to enable the application to communicate with the authorization server. You can click Copy to copy the client secret to the Clipboard.

Attribute

Description

Client Authenticator

The type of data used to authenticate the OAuth client. Currently, the value is always Client ID & Client Secret.

Client ID

The OAuth client ID defined in Sentinel EMS. If not specified, then the value is automatically generated when the OAuth client is created. The client ID, whether user-defined or auto-generated, is automatically prefixed with 'app-'.

You can click Copy to copy the client ID to the Clipboard.

Client Secret

Relevant only for confidential clients.

A secret used in the authentication process to enable the application to communicate with the authorization server.

You can click Copy to copy the client secret to the Clipboard.

Actions for OAuth Clients

The following table lists the actions available for OAuth client:

Action		Description
	Edit	Updates the information of an existing OAuth client. For details on editing OAuth clients, see Editing an Entity.
	Copy	Duplicates an existing OAuth client, enabling you to edit the copy and create a new OAuth client.
	Disable	Disables an OAuth client.
	Delete	Deletes an OAuth client.
