Configuring Sentinel LDK to Work With Sentinel EMS

Follow the instructions below to configure Sentinel LDK to work with Sentinel EMS on a Windows machine.

To configure Sentinel LDK to work with Sentinel EMS:

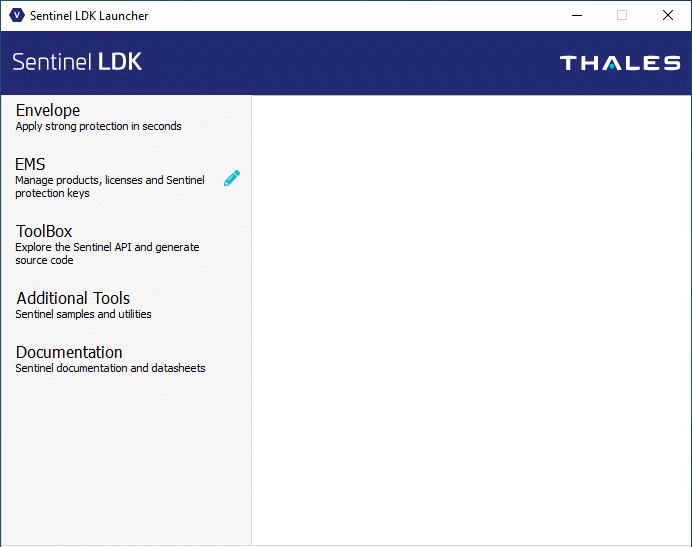

1.From the Start menu, select Thales > Sentinel LDK. The Sentinel LDK Launcher is displayed.

2.Set the Sentinel EMS URL.

a.In the navigation pane, next to Sentinel EMS, click the edit button . The Set Up Access to Sentinel EMS screen is displayed.

b.Enter the URL for Sentinel EMS and click Save.

3.Set the Sentinel EMS URL for Sentinel Admin Control Center.

a.From the navigation pane, click Additional Tools > Admin Control Center. Sentinel Admin Control Center opens.

b.In the Options pane, click Configuration. The Configuration page is displayed.

c.From the top of the page, click the Network tab. The Network page is displayed.

d.In the EMS URL field, add the URL for Sentinel EMS. (Do not overwrite any existing URLs in the field.)

e.Click Submit.
